KA42-3000-AOI Automatic Tape IC Programmer with AOI Vision | 2500 UPH Tape In/Out Programming Machine for QFN/SOP/QFP

Name: KA423000AOI Automatic Tape IC Programmer with AOI Vision 2500 UPH Tape InOut Programming Machine for QFNSOPQFP
Brand: KINCOTO
Price: 21688 USD

Best KA42-3000-AOI Automatic Tape IC Programmer with AOI Vision | 2500 UPH Tape In/Out Programming Machine for QFN/SOP/QFP wholesale

Price : 21688USD/set

Supply Ability : 10000

Output efficiency : 2500 UPH

MOQ : 1

Certification : CE

Overall size : 950 × 1080 × 1600 mm

Supports IC package : QFN, SOP, SSOP, TSSOP, SON, QFP, and more

Brand Name : KINCOTO

Input voltage : AC220/50Hz

Power : 0.25 kw

Host size : 950 × 580 × 1600 mm

Payment Terms : T/T

Display screen : 19" LCD

Place of Origin : Guangdong

Discharging (Outgoing) : Automatic hot-pressing sealing (tape out)

Model Number : KA42-3000-AOI

Programming station : 4 stations (1-4 customizable)

Programming method : Down-pressure socket

Feeder (Incoming) : Standard 12-16mm optional 8/24/32/44mm feeder

Total weight : 280 KG

X-axis : Linear motor

Air source : 0.4-0.6MPA

Delivery Time : within 45days

Packaging Details : Waterproof aluminum foil bags, vacuum-sealed and packed in wooden crates.

Pick and place device : 2 vacuum nozzles

Pick and place accuracy : ±0.03mm

Control mode : Motion control card

Contact Now

KA42-3000-AOI – Automatic Tape Programming Machine with AOI Vision

The KA42-3000-AOI is an advanced automatic tape programming machine designed for tape in, tape out (reel to reel) mass production. This model integrates AOI (Automated Optical Inspection) technology to deliver exceptional placement accuracy and chip orientation detection.

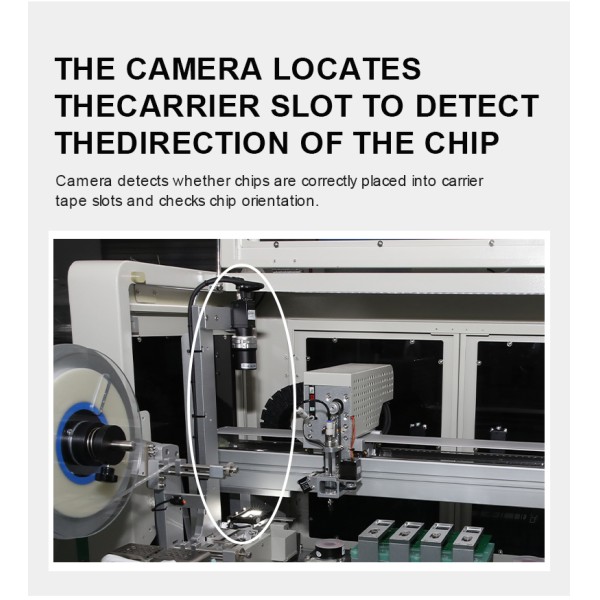

Equipped with a linear motor on the X-axis, 4 programming stations, and 2 vacuum nozzles, the KA42-3000-AOI achieves a stable output of 2500 UPH. The built‑in camera detects carrier slot position and chip direction, ensuring that every chip is placed correctly before programming – significantly reducing placement errors and improving yield.

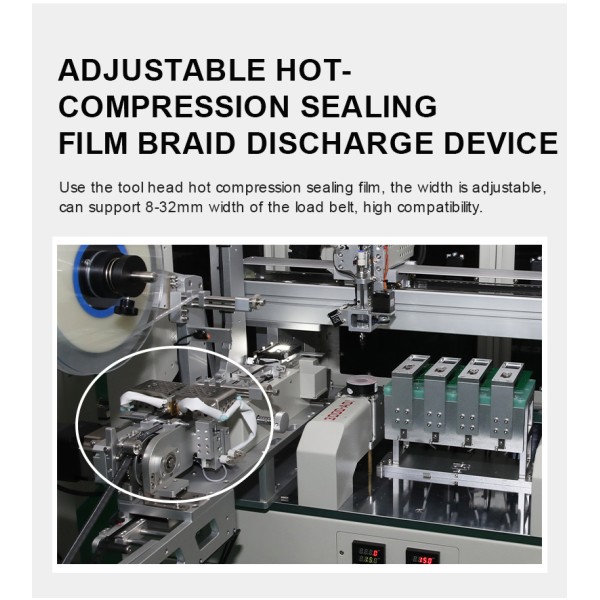

The machine supports a wide range of IC packages including QFN, SOP, SSOP, TSSOP, SON, and QFP. It comes with a standard feeder for 12-16mm tape width (optional 8-32mm available) and an automatic hot‑pressing sealing device for tape output.

With its 19" LCD touchscreen, motion control card, and flexible 1-4 station activation, the KA42-3000-AOI is an ideal solution for SMT lines, IC solution providers, and EMS companies that demand high precision, automated inspection, and reliable mass production.

KA42-3000-AOI Automatic Tape IC Programmer with AOI Vision | 2500 UPH Tape In/Out Programming Machine for QFN/SOP/QFP

Target Customers

SMT assembly factories

IC solution providers

IC distributors / agents

Consumer electronics EMS

Automotive electronics Tier 2/3

Industrial control manufacturers

Programming service centers

Key Selling Points

#	Selling Point
1	AOI Offset Correction – Built-in camera detects carrier slot position and chip orientation, ensuring accurate placement before programming
2	High Precision Placement – ±0.03mm repeatability with X-axis linear motor drive
3	2500 UPH Stable Output – 4 programming stations (1-4 customizable) for efficient mass production
4	Fully Automatic Tape In / Tape Out – Auto peeling, auto hot-pressing sealing, reel to reel operation
5	Wide Package Compatibility – Supports QFN, SOP, SSOP, TSSOP, SON, QFP, and more
6	User-Friendly Operation – 19" LCD touchscreen for easy setup and monitoring
7	Flexible Configuration – Standard 12-16mm feeder, optional 8-32mm, custom widths available
8	Motion Control Card – Smooth, precise, and reliable control for high-speed operation
9	Easy Maintenance – Down-pressure sockets are replaceable; linear motor reduces wear
10	Ideal for SMT & EMS – Perfect for tape-in/tape-out production lines requiring AOI inspection

KA42-3000-AOI Automatic Tape IC Programmer with AOI Vision | 2500 UPH Tape In/Out Programming Machine for QFN/SOP/QFP

Parameter	Value
Model	KA42-3000-AOI
Output Efficiency	2500 UPH
Host Size (L×W×H)	950 × 580 × 1600 mm
Overall Size (L×W×H)	950 × 1080 × 1600 mm
Supported IC Packages	QFN, SOP, SSOP, TSSOP, SON, QFP, and more
Programming Stations	4 stations (1-4 customizable)
Pick & Place Device	2 vacuum nozzles
Monitor	19" LCD
Pick & Place Accuracy	±0.03 mm
Control Mode	Motion control card
Programming Mode	Down-pressure socket
X-axis Drive	Linear motor
Feeding Device	Standard 12-16mm, optional 8-32mm Feeder
Discharging Device	Adjustable automatic hot-pressing film sealing device
Input Voltage	AC220V / 50Hz
Power Consumption	0.25 KW
Air Source	0.4-0.6 MPA
Total Weight	280 KG

KA42-3000-AOI Automatic Tape IC Programmer with AOI Vision | 2500 UPH Tape In/Out Programming Machine for QFN/SOP/QFP

Our programmers are compatible with most mainstream programmer manufacturers, including:

支持的烧录器品牌

品牌英文名	中文名
Sofi-tech	硕飞科技
SinoMCU	上海晟矽微电子
Holychip	上海芯圣电子
Holtek	合泰半导体
Sonix	松翰科技
Elan	义隆电子
Nyquest	九齐科技
PADAUK	应广科技
Hyundai	现代单片机
SinoWealth	中颖电子
Airoha Technology	络达科技
JIELI Technology	杰理科技
Buildwin	建荣集成电路
CT-UNITE	中科蓝讯
NATION	国民技术

Other programmers can be supported upon request. Please contact us to verify compatibility.

KA42-3000-AOI Automatic Tape IC Programmer with AOI Vision | 2500 UPH Tape In/Out Programming Machine for QFN/SOP/QFP
